Description
Attributes
- Pressure Range (PSI): 4.5 To 9 Pounds Per Square Inch
- Fuel Type: Gasoline
- Regulator Location: Inline
- Regulator Type: Non-Return
- Shape: Rectangular
- Inlet Size: 3/8 Inch (-6 AN)
- Inlet Quantity: Single
- Inlet Attachment: Female Threads
- Outlet Size: 3/8 Inch (-6 AN)
- Outlet Quantity: Dual
- Outlet Attachment: Female Threads
- Return Port Size: No Return Port
- Finish: Chrome Plated
- Color: Silver
- Material: Aluminum
- Gauge Port: No
- Includes Fittings: No
- Includes Mounting Brackets: Yes
Product

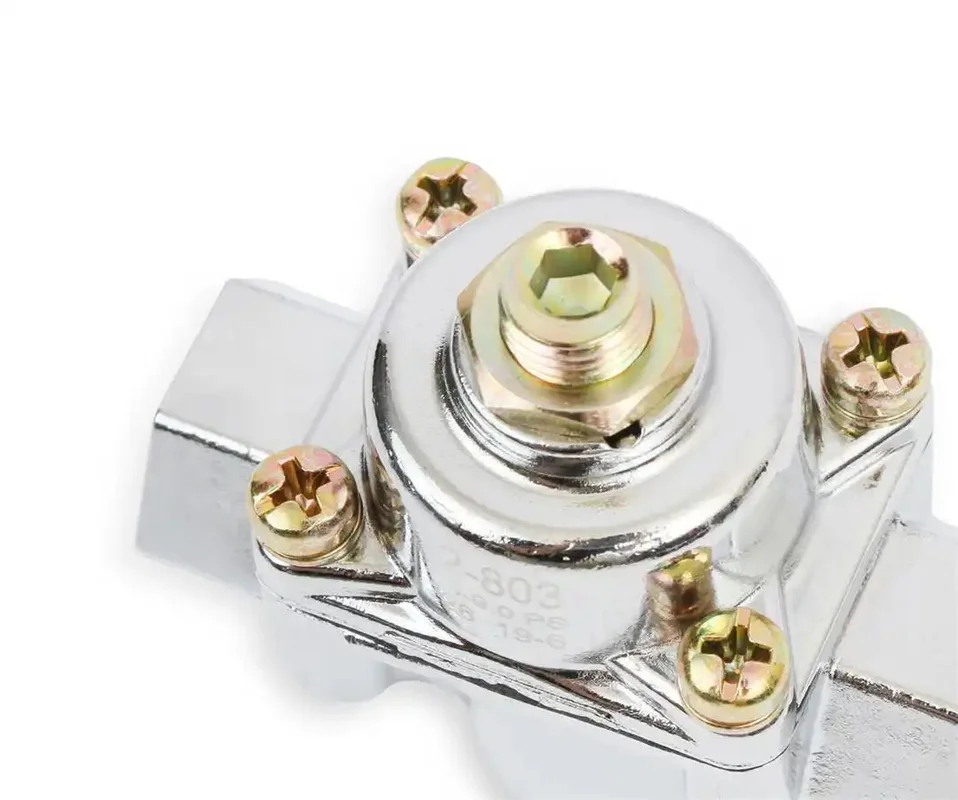

The needle and seat assemblies that are installed in Holley performance Carburetors can satisfactorily control fuel pressure up to about 8 PSI. If the fuel pump is putting out more than 8 PSI, a regulator should be used to keep the fuel pressure within safe limits and avoid the possibility of flooding. Holley manufactures a number of regulators for most any need. A street regulator is available in chrome finish. A performance regulator is available in chrome finish. Both regulators feature a 3/8 Inch NPT inlet port and two 3/8 Inch NPT outlet ports with a 0.220 Inch restriction. The street version regulates pressure from 1 To 4 PSI while the performance version regulates pressure from 4-1/2 To 9 PSI.
Features & Benefits
- Fuel Pressure Regulator Features 3/8 Inch NPT In And Out Ports
- Adjustable Fuel Regulation
- Designed To Precisely Control The Fuel Pressure From The Fuel Pump To The Carburetor
- Chrome Finish
- Limited 90 Day Supplier Warranty
