Connector Set, Hobbs Switch, Other 12-14 Ga.-Quality Guarantee

Description

RCS-057 – Connector Set, Metri-Pack 280 Sealed, 2F
This weatherproof connector set is recommended for the following medium-current applications:

Hobbs Switch

Fuse Holder

NOT FOR USE WITH FUELS. PLEASE SEE RCS-095 INSTEAD

SPECIFICATIONS (KIT):

WIRE O.D. (mm): 2.03-2.85 (GREEN)

WIRE GAUGE (AWG): 12-14

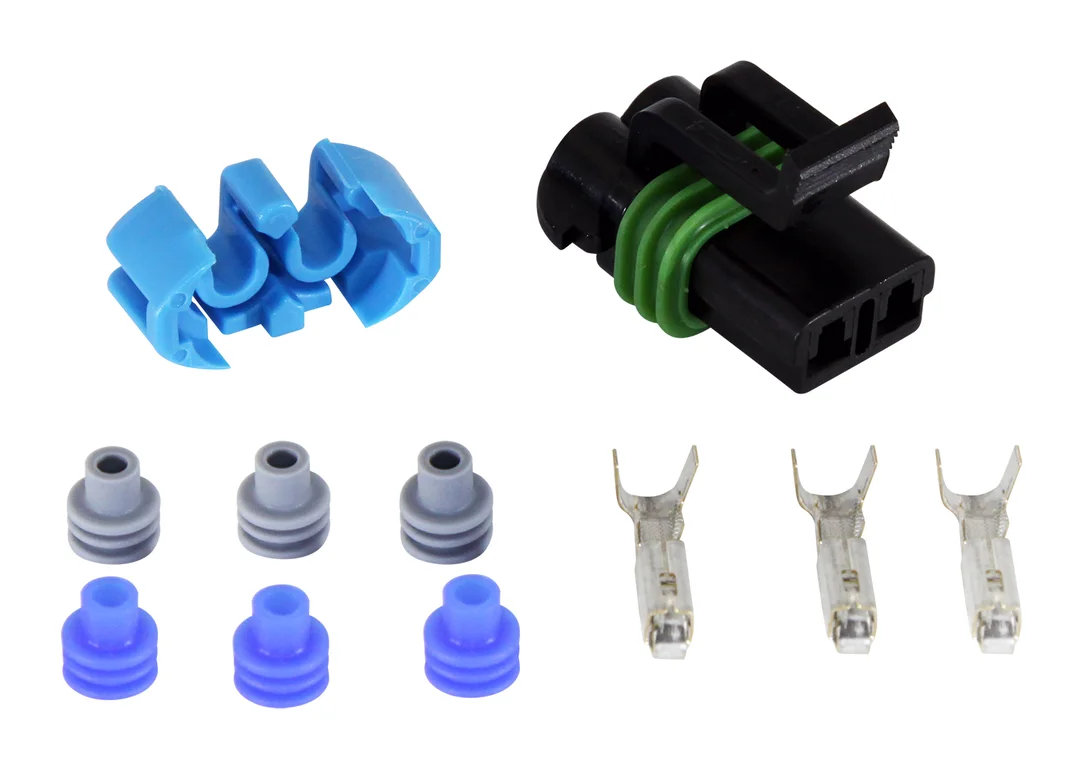

KIT INCLUDES:

1 x Female Connector Body

3 x Cable Seal (Green)

3 x Female Terminals (1 spare)

1 x Terminal Lock (Blue)

NOTE: Proper B-type crimpers and soldering equipment are recommended to properly assemble this connector set.
CONNECTOR SPECIFICATIONS:

CURRENT RANGE (AMPS): 0-30

TEMP RANGE °C: -40 to 125

RESISTANCE:

VOLTAGE DROP:

CENTER LINE SPACING (mm): 7.7

BLADE WIDTH (mm): 2.8
