Connector Set, Hobbs Switch-Quality Guarantee

Description

RCS-007 – Connector Set, Metri-Pack 280, Hobbs Switch
This weatherproof connector set is recommended for the following medium-currect applications:

Hobbs Switch

SPECIFICATIONS (KIT):

WIRE O.D. (mm): 2.03-2.42 (TAN)

WIRE GAUGE (AWG): 18-16

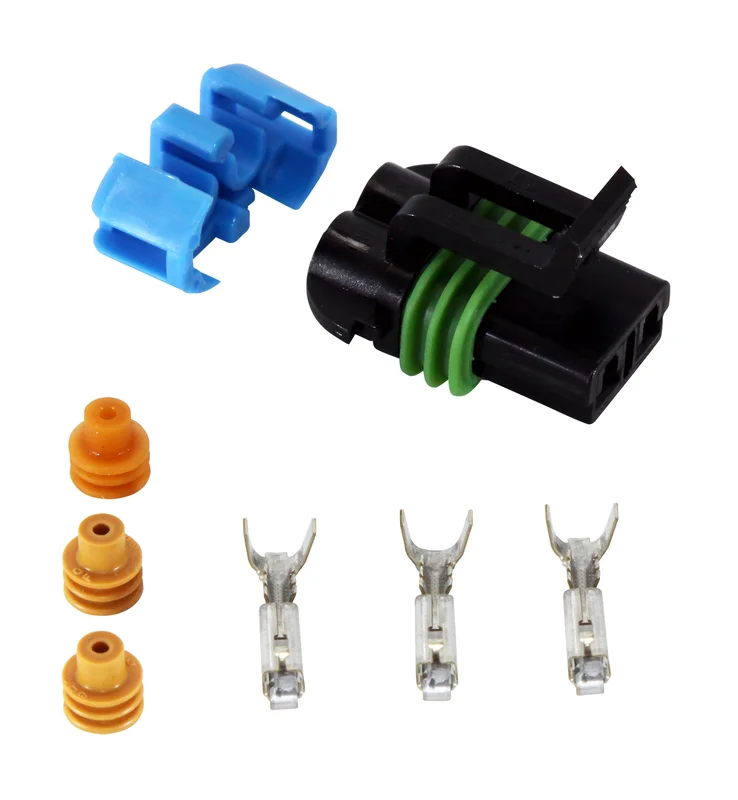

KIT INCLUDES:

1 x Female Connector Body

3 x Cable Seal (Tan)

3 x Female Terminals (1 spare)

1 x Terminal Lock (Blue)

NOTE: Proper B-type crimpers and soldering equipment are recommended to properly assemble this connector set.
CONNECTOR SPECIFICATIONS:

CURRENT RANGE (AMPS): 0-30

TEMP RANGE °C: -40 to 125

RESISTANCE:

VOLTAGE DROP:

CENTERLINE SPACING (mm): 7.7

BLADE WIDTH (mm): 2.8
