Description

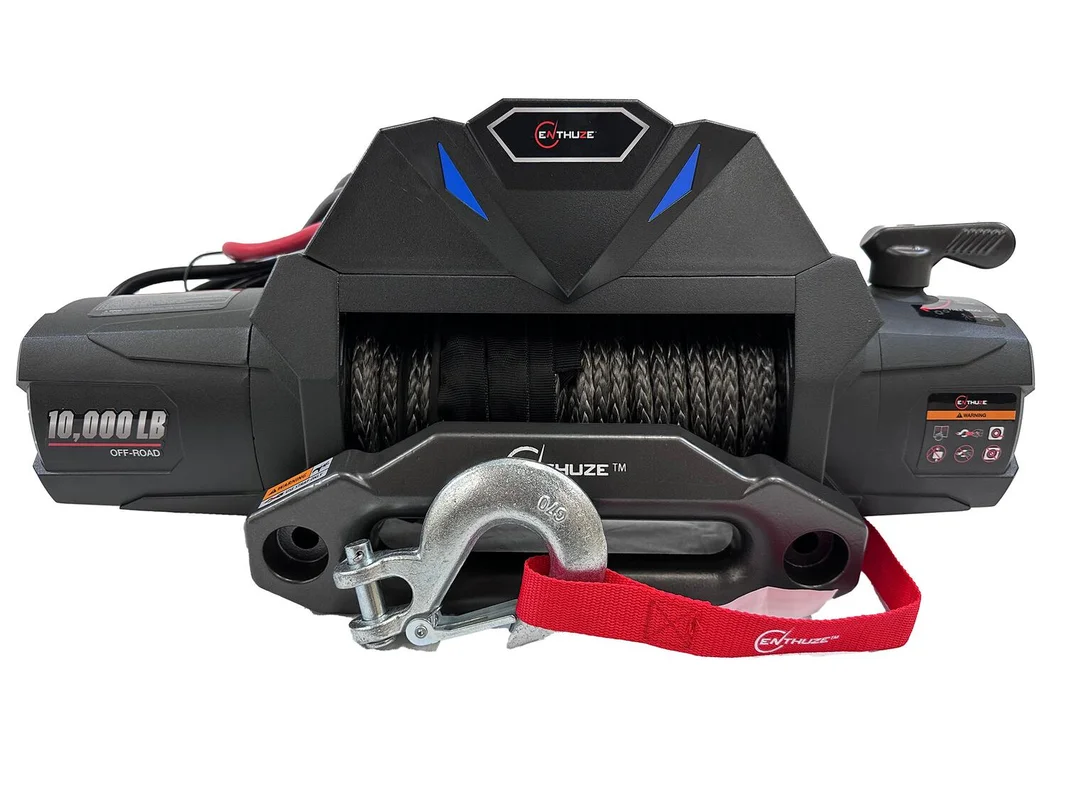

The Enthuze 10,000lb 12V-DC Electric Vehicle Winch features a series-wound motor that stays cooler during long pulls. The three-stage planetary gear system provides fast line speed. The automatic load-holding brake ensures maximum safety. The free spooling provides a fast line-out. The winch has a Hawse fairlead and a synthetic rope.
Specifications:
| _DES | Enthuze 10000 lb Winch, Synthetic Rope |
| _MKT | The Enthuze 10,000lb 12V-DC Electric Vehicle Winch features a series-wound motor that stays cooler during long pulls. The three-stage planetary gear system provides fast line speed. The automatic load-holding brake ensures maximum safety. The free spooling provides a fast line-out. The winch has a Hawse fairlead and a synthetic rope. |
| _ASC | 5.5 HP permanent magnet motor;Three-stage planetary gear system provides fast line speed;Automatic load-holding brake keeps drum cool;2.75″ drum for superior cable-surface contact;Equipped with premium stainless-steel hardware;Includes 82′ synthetic rope and hook;IP68 waterproof design keeps elements out;Includes 12′ wired remote control |
| _ASC | To prevent serious injury, read and understand the owner’s manual before operating;Do not exceed the rated load capacity;This winch is intended for pulling only;Do not use to transport people or animals;Keep hands clear of winch rope, hook loop, hook and fairlead opening during installation and operation, and when spooling in our out.;Wear ANSI-approved safety goggles and heavy-duty leather work gloves during installation and use;Do not engage or disengage the clutch while loaded;Keep bystanders out of the area while operating the winch;Not for use by or around children |
| _ASC | Rated Single Line Pull: 10,000lb (4536kg);Application: Vehicle Recovery / For Trucks and SUVs;Motor: 12V DC 5.5 HP Series Wound;Power In & Power Out: Yes;Duty Cycle Rating: 5% (45 seconds at Max Rated Load; 14 minutes, 15 seconds rest);Pendant Controller: Wired, 12′ (3.7m) Long;Gear Train: 3-stage Planetary;Gear Ratio: 232:1;Free Spool: Locking Ring Gear;Brake: Auto Load Holding;Drum (Dia. XL): 2.75″ x 8.8″ (70mm x 224mm);Clevis Hook: 3/8″, Replaceable with Spring-Loaded Safety Latch;Fairlead: Hawse Fairlead;Rope Size/Type: 0.335″ x 82′ (8.5mm x 25m);Synthetic Rope;Battery: 12V DC Minimum 650 CCA;Battery Cables: Min. 3.5 Gauge;Mounting Bolt Pattern: 10”x 4.5” (254mm x 114.3mm);Mounting Hardware: Winch: 4×G8, M10-1.50×30mm, : Fairlead: 2×G8, M12-1.75×25mm;Overload Protection: Built-in with remote;Sound Rating: 85db;Overall Dimensions (LXDXH): 21.3″ X 6.5″ X 9.76”(540mm X164mm X248mm);Weight: 60lb (27.37 kg);IP Rating: IP68 – Winch and Controls |
