Description

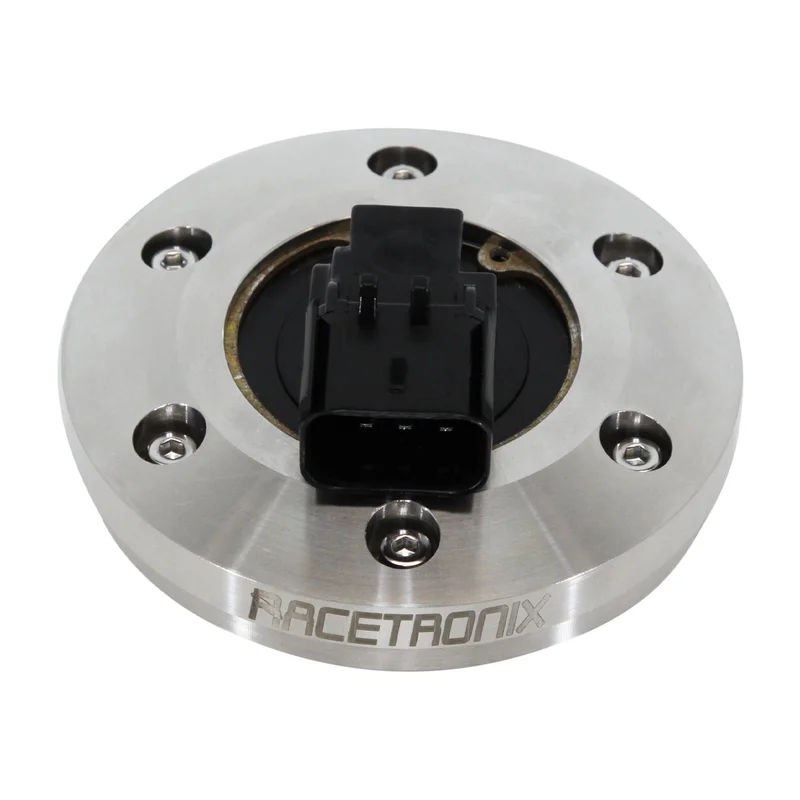

BUNG-BCAPX28SS, Bulkhead Wiring Assembly, 6-Conductor, Bolt-In Stainless Steel
6-Conductor Bulkhead Connector, 30 Amps per terminal (max ICS)
304 Stainless Steel Bolt-in bung
Viton/FKM seals, Gas & E85 compatible
Installs on any flat surface with a 2″ hole
Vapor and liquid proof
Plug & Play 6-position atmosphere and vapor-side connectors available
The BUNG-BCAPX28SS makes it easy to install up to six individual electrical circuits into your fuel tank. The 6-conductor bulkhead connector can handle up to 30 amps (ICS) which is enough to support the latest high-flow in-tank pumps. The stainless steel bung can be bolted onto the top of any fuel tank, fuel cell, surge tank, etc. The bung requires a 2″ hole and 6 small holes for 4mm screws. Please see the attached drawings.
A clean flat circular area of 3.5″ (90mm) is required for the installation area so that the o-rings can seal properly.
PARTS INCLUDED:
1 x 6-conductor APEX 2.8 bulkhead connector
1 x Bolt-in bung – 304 stainless steel
2 x Threaded backing plates – 304 stainless steel
2 x Viton/FKM o-rings
1 x Retaining ring
6 x Crush washers
6 x M4x25 socket cap screws – stainless steel
1 x Silicon grease packet
Mating connector sets are required for the atmosphere and vapor-side connections listed under add-ons below.
