Name: Hose Clamp, T-Bolt 1.5" - 1.7" (38-43x19mm), 304SS-Quality Guarantee
SKU: TBHC-W4-043
Availability: InStock

Description

TBHC-W4-043 – Hose Clamp, T-Bolt 1.5″ – 1.7″ (38-43x19mm), SSW4
FEATURES:

Size: 1.5″ – 1.7″ (38-43x19mm)

304 Stainless steel (W4) t-bolt (A2), lock-nut, trunnion and spacer

304 Stainless steel (W4) band with beveled edge

304 Stainless steel (W4) angled t-bolt, trunnions and bridge

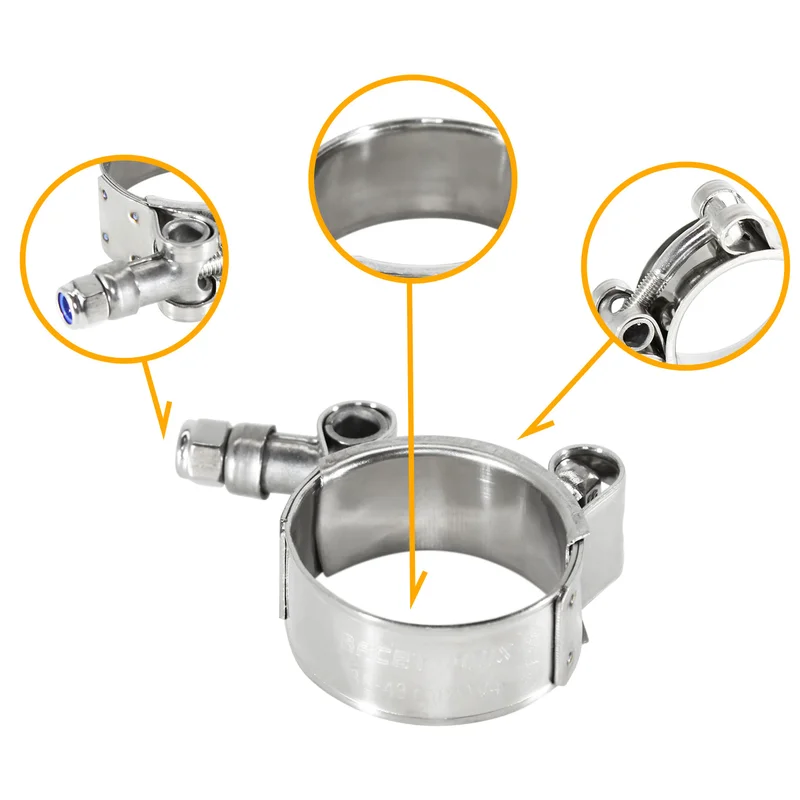

Racetronix TBHC-W4 t-bolt hose clamps feature 100% 304 stainless steel construction for superior strength and corrosion resistance. The angled t-bolt improves even tensioning force. The beveled edges and bridge eliminate the possibility of sharp edges cutting into your hoses.

Inch Metric Item Code

1.4″ – 1.6″	35-40 x 19mm	TBHC-W4-040
1.5″ – 1.7″	38-43 x 19mm	TBHC-W4-043
1.6″ – 1.8″	41-46 x 19mm	TBHC-W4-046
1.7″ – 2.0″	44-51 x 19mm	TBHC-W4-051
1.9″ – 2.2″	48-56 x 19mm	TBHC-W4-056
2.0″ – 2.3″	51-59 x 19mm	TBHC-W4-059
2.1″ – 2.4″	54-62 x 19mm	TBHC-W4-062
2.2″ – 2.6″	57-65 x 19mm	TBHC-W4-065
2.4″ – 2.7″	60-68 x 19mm	TBHC-W4-068
2.5″ – 2.8″	63-71 x 19mm	TBHC-W4-071
2.6″ – 3.0″	67-75 x 19mm	TBHC-W4-075
2.8″ – 3.1″	70-78 x 19mm	TBHC-W4-078
2.9″ – 3.2″	73-81 x 19mm	TBHC-W4-081
3.0″ – 3.3″	76-84 x 19mm	TBHC-W4-084
3.1″ – 3.4″	79-87 x 19mm	TBHC-W4-087
3.3″ – 3.6″	83-91 x 19mm	TBHC-W4-091
3.4″ – 3.7″	86-94 x 19mm	TBHC-W4-094
3.5″ – 3.8″	89-97 x 19mm	TBHC-W4-097
3.6″ – 3.9″	92-100 x 19mm	TBHC-W4-100
3.7″ – 4.1″	95-103 x 19mm	TBHC-W4-103
4.0″ – 4.3″	102-110 x 19mm	TBHC-W4-110
4.3″ – 4.6″	108-116 x 19mm	TBHC-W4-116
4.5″ – 4.8″	114-122 x 19mm	TBHC-W4-122
4.8″ – 5.1″	121-129 x 19mm	TBHC-W4-129
5.0″ – 5.4″	127-138 x 19mm	TBHC-W4-135
5.2″ – 5.6″	133-141 x 19mm	TBHC-W4-141
5.5″ – 5.8″	140-148 x 19mm	TBHC-W4-148
5.7″ – 6.1″	146-154 x 19mm	TBHC-W4-154
6.0″ – 6.3″	152-160 x 19mm	TBHC-W4-160
6.3″ – 6.6″	159-167 x 19mm	TBHC-W4-167
6.5″ – 6.8″	165-173 x 19mm	TBHC-W4-173
6.8″ – 7.1″	172-180 x 19mm	TBHC-W4-180
7.0″ – 7.3″	178-186 x 19mm	TBHC-W4-186
7.2″ – 7.6″	184-192 x 19mm	TBHC-W4-192
7.5″ – 7.8″	190-198 x 19mm	TBHC-W4-198
