This system features upper control arms with ICON’s patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

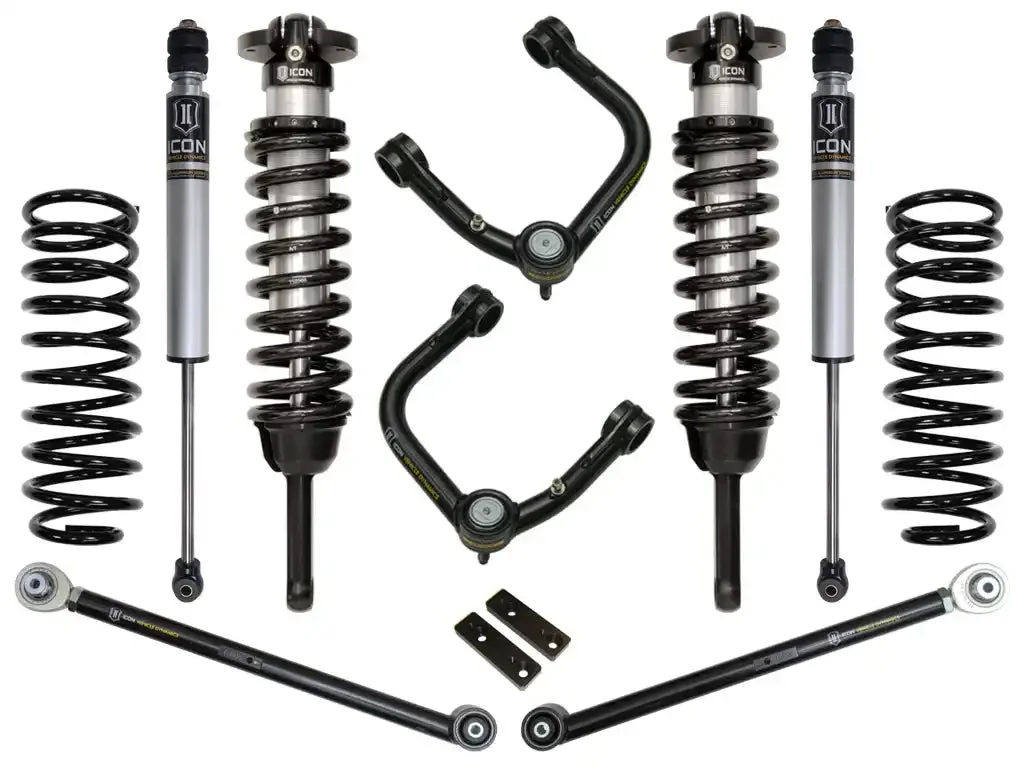

Lift Kit Suspension; Stage 3; 0 To 3-1/2 Inch Front Lift; 2 Inch Rear Lift; With Front Coil Over Shock Absorbers And Rear Shock Absorbers In Kit; Black Components/ Gray Shock Absorbers; With Front Coil Over Mounts/ Rear Coil Springs/ Front Upper Tubular Control Arms/ Tubular Trailing Arms/ Installation Hardware
Features & Benefits
- Increased wheel travel and ride quality over stock
- Bolt-on system means no cutting or welding necessary for install
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers provide 0-3.5″ of front lift height
- Extended Travel coilovers matched with ICON UCA provides increased front droop travel
- Tubular rear lower links offer increased strength, improved geometry, and pinion angle adjustment
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8″ shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series rear internal reservoir shocks with 5/8″ shafts
Attributes
- Front Lift Amount (IN): 0 To 3-1/2 Inch
- Rear Lift Amount (IN): 2 Inch
- Maximum Tire Size: 33 x 11.25
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Coil Spring
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.75
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Gray Shock Absorbers
- GTIN: 00840103416830
- Brand Name: ICON Vehicle Dynamics
- 1078: 650
- 2064: Steel
- 2371: Yes
- 30: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 3.5
- 7325: 2
- 7326: 2
- Add-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KIT
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm Offset
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Installation Instructions
- I58645_REVC.pdf
- I58451DJ_REVF.pdf
- I56505_REVC.pdf
- I54000T_REVB.pdf
Warranties
- ICON_Warranty_2023_1730.pdf
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 27.0000 x 12.0000 x 6.0000 inches
- Weight: 131.0000 lb
